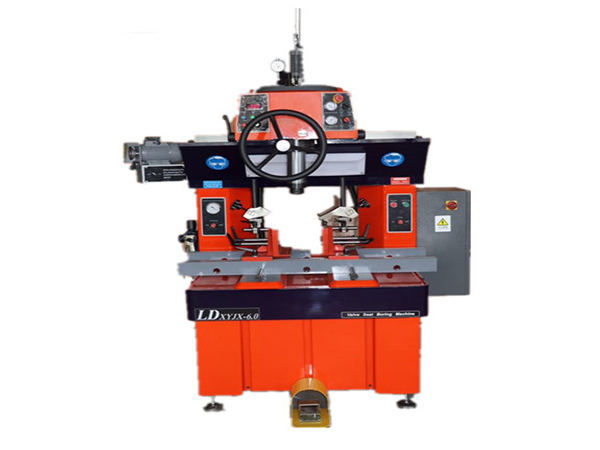

LD6.0

主要技术参数

Main Specifications

LD6.0

气缸盖最长尺寸  mm

Max. Length of Cylinder Head

Unlimited

气缸盖最宽尺寸  mm

Max. Width of Cylinder Head

500

气缸盖最高尺寸  mm

Max. Height of Cylinder Head

450

横向工件倾斜角度  degree

Crosswise Workpiece Titling

+45~-15

加工范围  mm

Processing Diameter

16-50

自对中镗头行程

Work Head Displacement

纵向  mm

Lengthwise

66

横向  mm

Crosswise

40

球形气缸行程  mm

Sphere-Cylinder Stroke

9

主轴

Spindle

主轴最大倾斜角度  degree

Max. Spindle Incination

5

主轴行程  mm

Spindle Stroke

200

主轴电机功率  kw

Spindle Motor Power

1.5kw

主轴转速 rpm

Spindle Rotation Speed

100-1200

机器外形尺寸 （L*W*H）mm

Overall Dimensions

1260*1050*2170

净重/毛重

N.W/G.W

1050/1300
