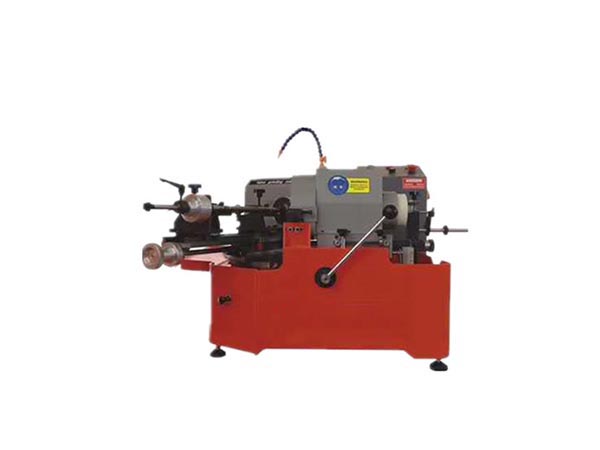

LD100S

主要技术参数

Main Specification

LD100S

气门杆直径  mm

Valve Stem Diameter

3.5-20

气门盖直径  mm

Valve Head Diameter

12-100

气门长度  mm

Valve Length

70-290

磨削角度范围  degree

Angle Grinding Range

10-57

主轮直径 mm

Main Wheel Diameter

200

杯轮直径  mm

Cup wheel Diameter

100

砂轮宽度  mm

Main Wheel Width

15

砂轮行程  mm

Grinding Wheel Stroke

90

气门进给行程  mm

Valve Feed Stroke

90

主轴电机功率 kw

Motor Power

0.55

主轴电机速度 rpm

Main Motor Rotation Speed

2900

电压 V

Voltage

220/380

外形尺寸  （L*W*H）mm

Overall Dimensions

1050*1000*680

净重/毛重

N.W/G.W

180/200
