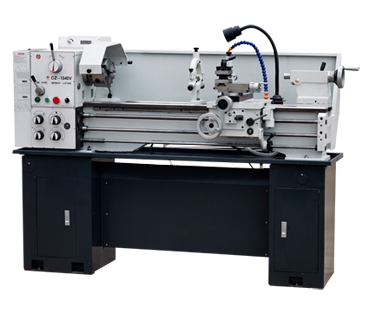

CZ1340V/CZ1440V/CZ1237V

SPECIFICATION

ITEM

CZ1340V

CZ1440V

CZ1237V

Swing over bed

mm

φ330

φ355

φ305

Swing over carriage

mm

φ195

φ220

φ173

Swing over gap

mm

φ476

φ500

φ440

Width of bed-way

mm

186

186

182

Distance between centers

mm

1000

1000

940

Spindle taper

M.T.5

M.T.5

M.T.5

Spindle bore

mm

φ38

φ38

φ38

Step of speed

Variable

Variable speed

Variable

Range of speed

rpm

低速档  70~480

低(low ):  70~480

低速档70~520

高速档  480~2000

高(high):  480-2000

高速档520~1700

Head

D1-4

D1-4

D1-4

Metric thread

26kinds (0.4~7mm)

26kinds (0.4~7mm)

26kinds (0.4~7 mm)

Inch thread

34kinds(4~56T.P.I)

34kinds(4~56T.P.I)

34kinds(4~56T.P.I)

Moulder thread

16 kinds(0.35~5M.P)

16 kinds(0.35~5M.P)

Diametral thread

36 kinds(6~104D.P)

36 kinds(6~104D.P)

Longitudinal feeds

mm/r

0.052~1.392 (0.002”~0.0548”)

0.052~1.392 (0.002”~0.0548”)

0.052~1.392(0.002”~0.0548”)

Cross feeds

mm/r

0.014~0.38 (0.00055”~0.015”)

0.014~0.38 (0.00055”~0.015”)

0.014~0.38(0.0007”~0.0187”)

Diameter  lead screw

mm

φ22(7/8”)

φ22(7/8”)

φ22(7/8”)

Pitch of lead screw

3mm or 8T.P.I

3mm or 8T.P.I

3mm or 8T.P.I

Saddle travel

mm

1000

1000

810

Cross travel

mm

170

170

150

Compound travel

mm

74

74

90

Compound travel

mm

95

95

100

Barrel diameter

mm

φ32

φ32

φ32

Taper of center

mm

M.T.3

M.T.3

M.T.3

Motor power

Kw

1.5(2HP)

1.5(2HP)

1.5(2HP)

Motor for coolant system’s power

Kw

0.04(0.055HP)

0.04(0.055HP)

0.04(0.055HP)

Machine(L×W×H)

mm

1920×760×760

1920×760×760

1780×750×760

Stand(left) (L×W×H)

mm

440×410×700

440×410×700

400×370×700

Stand(right) (L×W×H)

mm

370×410×700

370×410×700

300×370×700

Machine

Kg

500/560

505/565

390/440

Stand

Kg

70/75

70/75

60/65

Loading amount

22pcs/20’container

22pcs/20’container

24pcs/20’container
