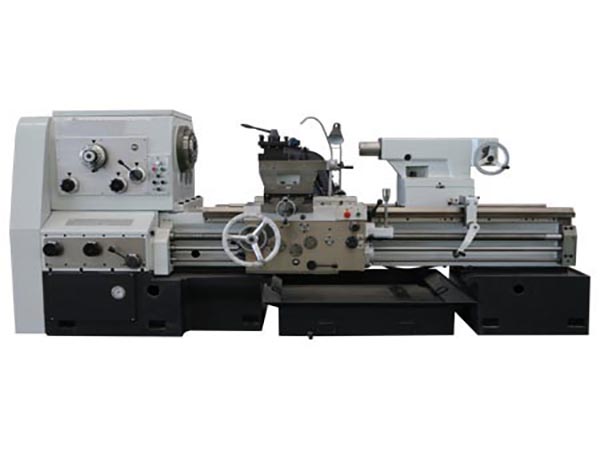

C6163B/C6180A/C6263B/C6280A/C6180

items

unit

C6163B

C6180A

C6180

capacity

Max swing over bed

mm(in)

φ660(φ25.984)

φ830(φ32.677)

φ830(φ32.677)

Max swing dia.over cross slide

mm(in)

φ400(φ15.748)

φ540(φ21.26)

φ500(φ19.685)

Max distance between two tops

mm(in)

1500/2000/3000/4000

(59.055/78.74/118.11/157.48)

1500 (59.055)

Max turning length

mm(in)

1400/1900/2900/3900

(55.118/74.803/114.173/153.543)

1400(55.118)

Width of bed way

mm(in)

560(22.047)

600(23.622)

spindle

Spindle thru-hole dia.

mm(in)

φ105(φ4.134)

Taper of spindle bore

1:20 (metric taper)

Type of spindle nose

A1-11

spindle speed

r/min(rpm)

14- class  12.5-1120

Feeds and

threads

Max travel of upper toolpost

mm(in)

200(7.874)

Max travel of lower toolpost

mm(in)

480(18.898)

515(20.276)

500(19.685)

Tool section

mm

32×32

X-axis feeds

mm/r（in/r）

64kinds 0.031-7.0(0.00122-0.276)

Y-axis feeds

mm/r（in/r）

64kinds 0.062-14.0(0.00244-0.551)

Metric threads

mm(in)

38kinds 0.5-56(0.00197-2.205)

Inch threads

t.p.i

43kinds  56-0.5

Module threads

πmm

21kinds  0.25-7

Diametric pitch threads

DP

27kinds  56-4

tailstock

Diameter of quill

mm(in)

φ100(φ3.937)

Max travel of quill

mm(in)

250(9.843)

Taper of quill(Morse)

Morse No.5
