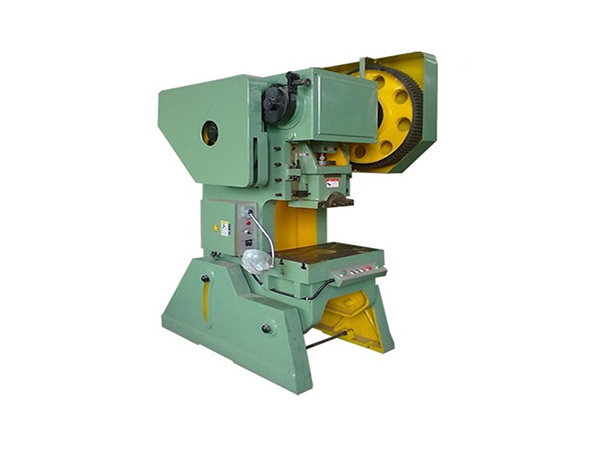

压力机

JB23-16/JB23-25/JB23-40/JB23-63/JB23-63A/JB23-80/JB23-100

Model		unit	JB23-16	JB23-25	JB23-40	JB23-63	JB23-63A	JB23-80	JB23-100
Nominal force		kN	160	250	400	630	630	800	1000
Stroke of the nominal force		mm	2	2.5	4	4	4	5	5
Stroke of slide		mm	50	70	80	80	80	100	100
Times of the slide stroke		times/min	140	65	50	50	50	50	40
Max closed height		mm	170	200	230	250	300	300	300
Closed height adjustment		mm	30	30	45	50	50	60	80
Distance from slide center to frame		mm	160	200	220	250	250	260	310
Table size		mm	320*460	350*520	390*630	420*650	470*750	470*750	570*860
Table plate hole size		mm	120	120	155	180	180	180	180
Table plate thickness		mm	45	50	70	70	80	80	90
Slider bottom size		mm	120*180	170*220	210*250	240*280	270*360	260*300	360*450
Mold handle hole size		mm	40*60	40*60	50*70	50*70	50*70	60*80	60*80
Column spacing		mm	240	240	330	320	390	300	420
Motor	Model	--	Y90L-6	Y100L-4	Y11M-4	Y132S-4	Y132S-4	Y132S-4	Y132M-4
Motor	power	kw	1.5	3	4	5.5	5.5	5.5	7.5
Max tilt degree			25	25	.25	25	25	20	20
Overall size		mm	11308301190	11208602200	160011002250	174011002560	174011802560	185012652650	205014002850
Weight		kg	1090	1090	2960	3800	4300	5015	6120
